Download WinUAE with CD32 support
Back to UAE page
Emulated:
- All CD32 joypad buttons
- C2P hardware (integrated in Akiko-chip on real CD32)
- CDROM hardware (integrated in Akiko-chip on real CD32)
- NVRAM interface and NVRAM memory chip (integrated in Akiko-chip on real CD32)
- CD32 extended ROM (CD32 ROMs required)
Other things:
- No game pad button GUI, buttons are currently hardcoded to my PSX game pad (connected to PC via USB adapter)
- I have also rewritten whole joystick/mouse emulation, now it is possible to map any button/joystick axle to any key or vice versa. (but without configuration editor this great feature is quite useless..)
21.02.2002:
- Release date of next official WinUAE (0.8.21R1) with full CD32 support will be very soon...
04.02.2002:
- CDROM emulation is nearly finished, only problem left is timing problems with CDXL animations
- Emulated CDROM speed is now limited to real CD32 CDROM drive speed (1x/2x)
23.01.2002:
- Hardware CDROM DATA support implemented. Most hardware banging games now load! (Cannon Fodder, Chuck Rock I & II etc..).
- Timing and implementation isn't even 80% correct yet (especially Core's loaders cause checksum errors. Yes, CDROM commands and return codes are checksummed!)
22.01.2002:
- CD audio commands are now emulated in hardware level. CD32 build-in CD audio player works! BTW: CD32's CDROM interface is very strange and unncessary complex, imho..
- Todo: CDROM DATA support.
01.01.2002:
- CDROM handling rewritten. Supports Windows 95/98/ME/2K/XP now.
- CDTV audio CD player works (booting CDTV CDROMs is still broken)
- added SCSI-direct support to cd.device. This means most Amiga audio CD players and CD burning software should now work!
NOTE: Host machine's all IDE and SCSI CDROM devices are supported (IDE CDROMS use subset of SCSI CDROM commands)
CD32 WinUAE Screenshots:

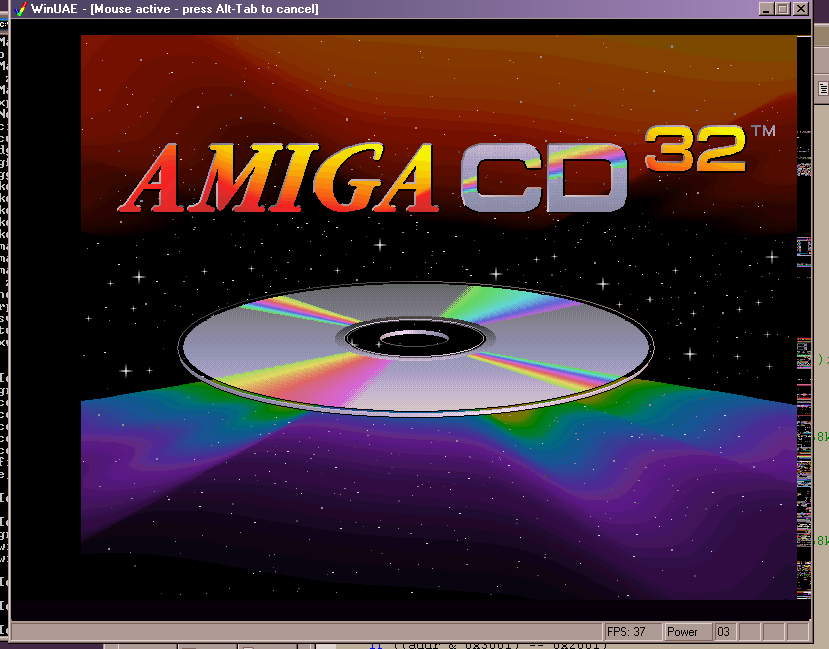

Boot screen

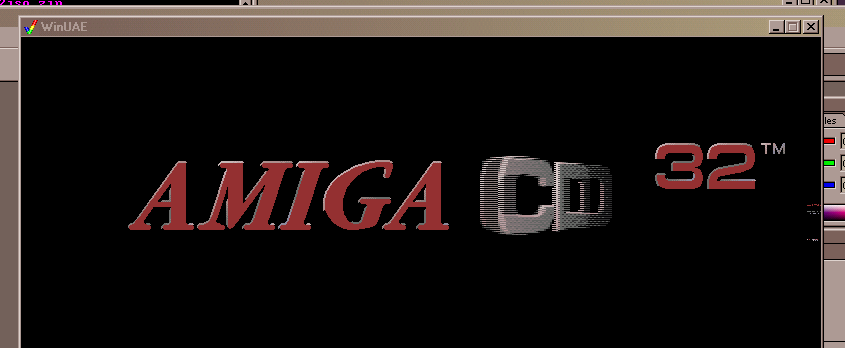

Game booting

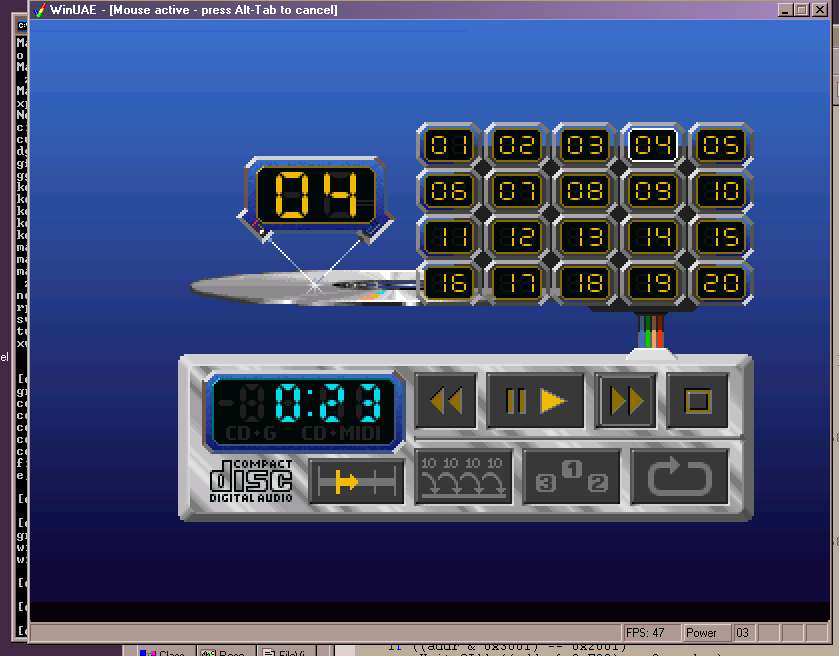

Audio CD player

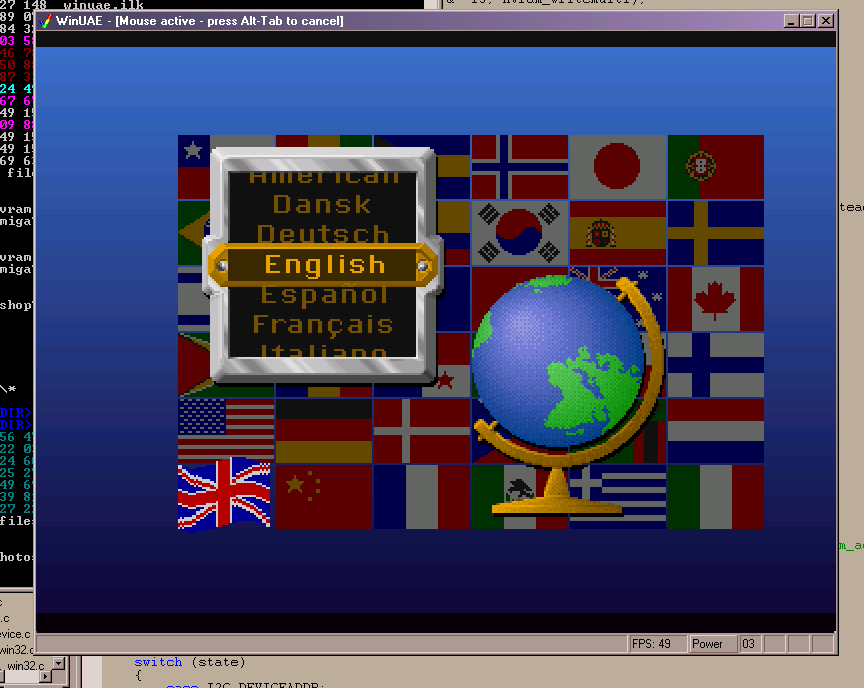

Language selection screen

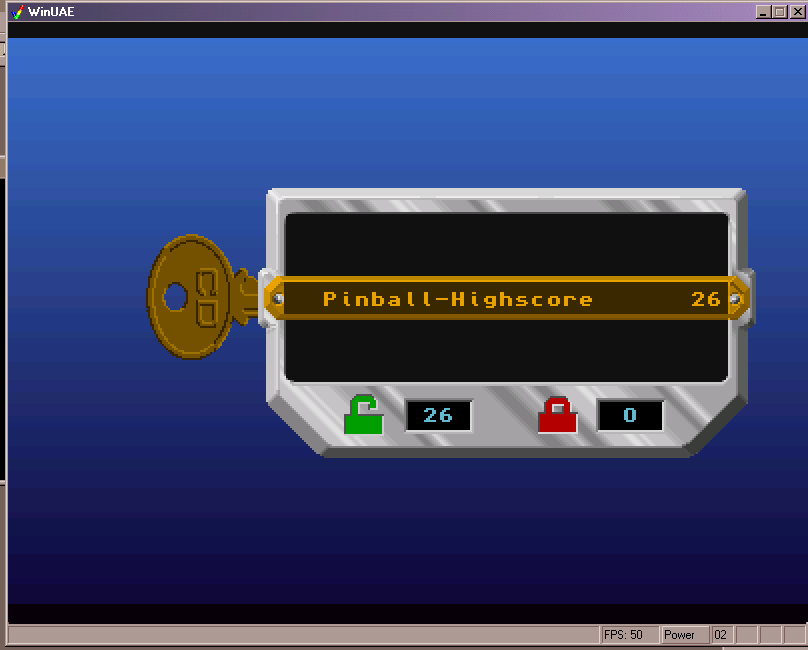

Save/highscore NVRAM editing screen
Game compatibility list (60 games tested)
CDTV WinUAE screenshots (game cd booting does not work yet)

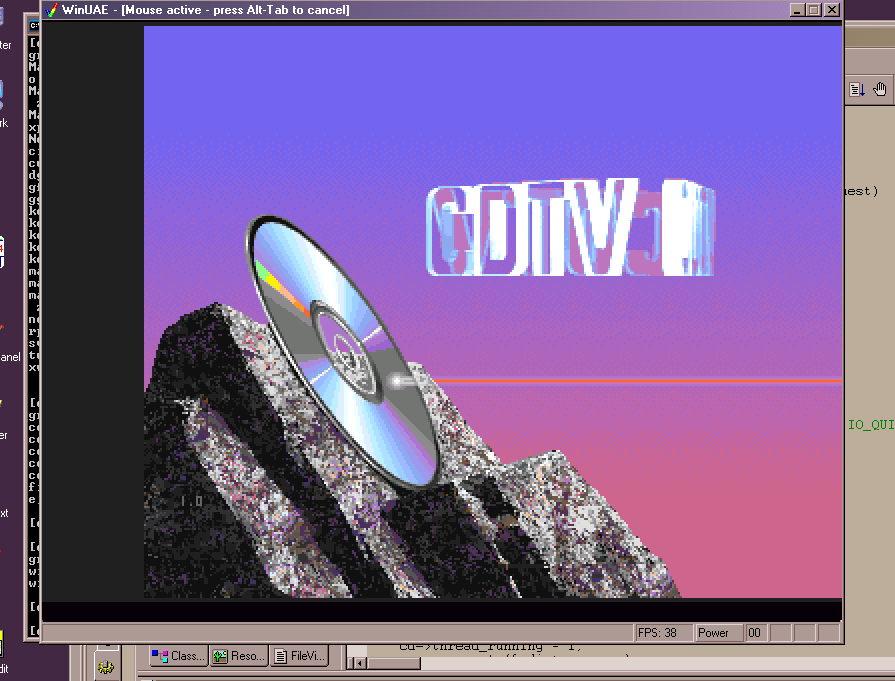

Boot screen

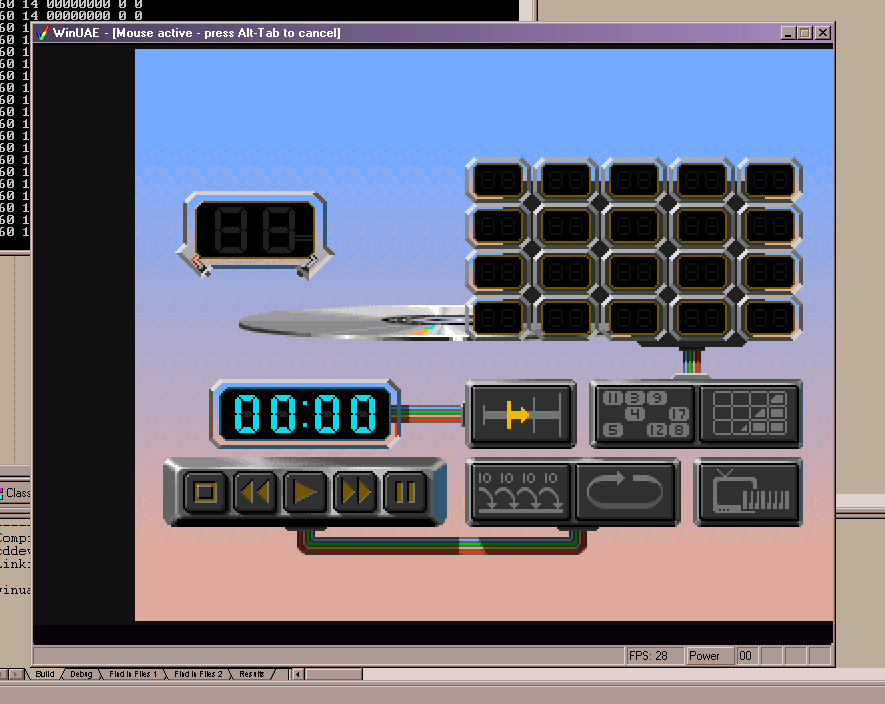

Audio CD player

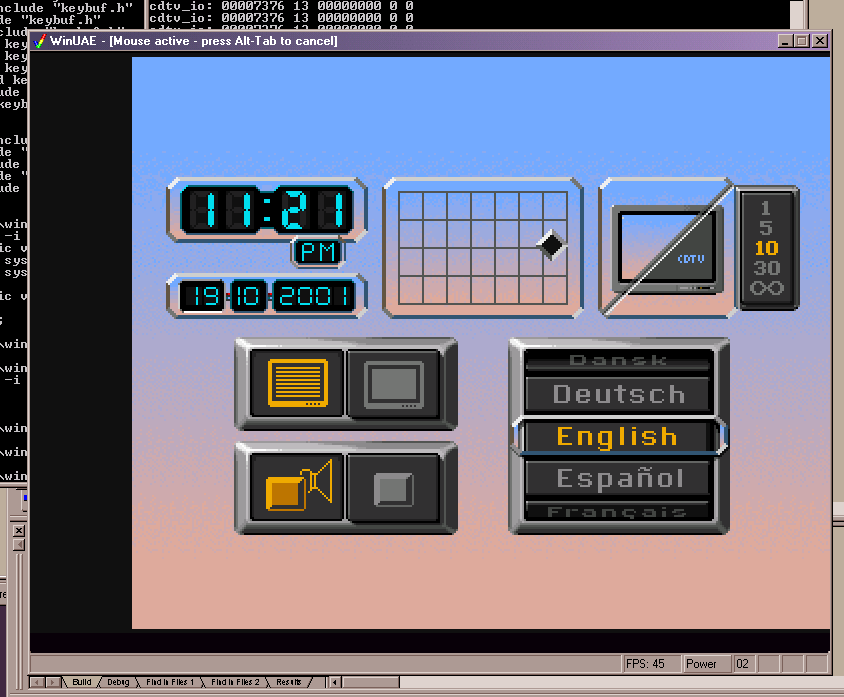

Options screen

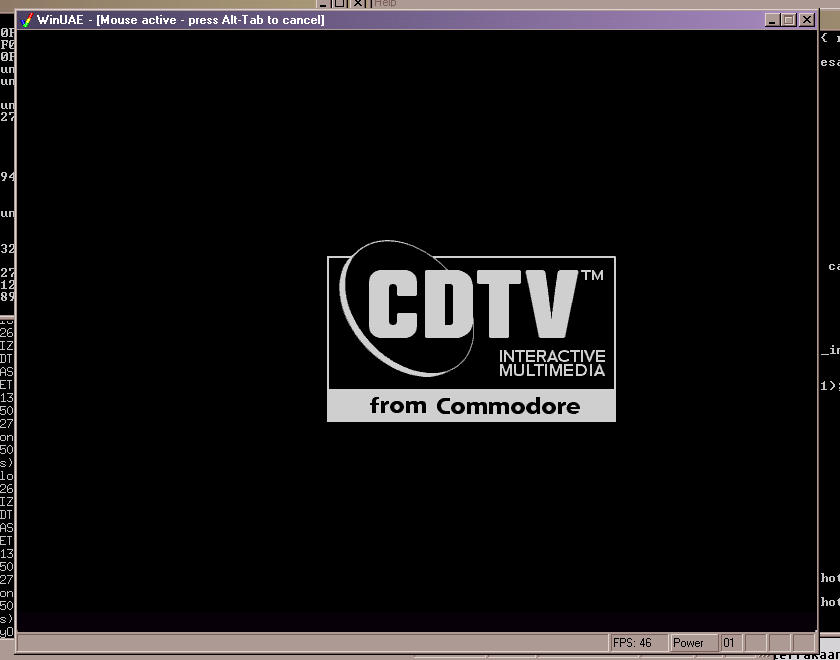

SimCity CDTV booting (currently just freezes here..)
Page created: 24.12.2001. Contact Toni Wilen
